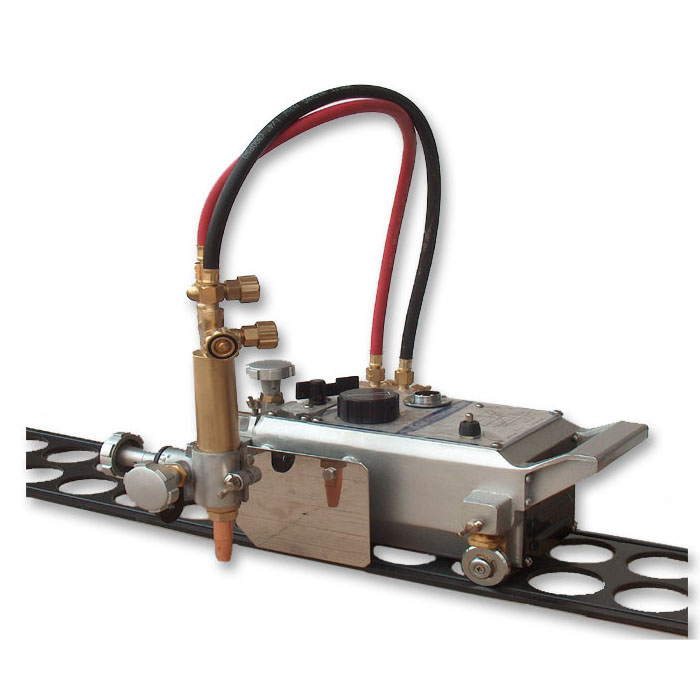

Semi-automatic cutter
Semi-automatic cutter

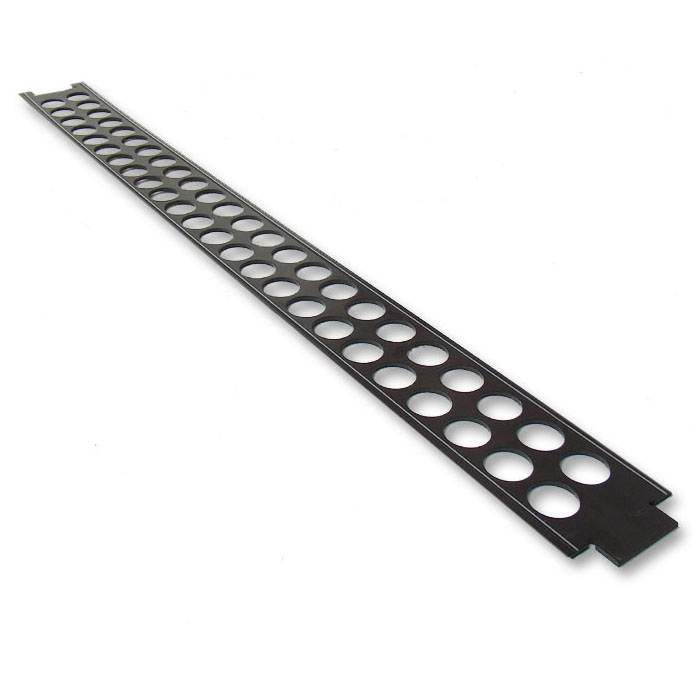

Less variation device assures constantly stable machine travel. Plate track for straight line cutting is available in terlocking sections of 1,800mm(70") each whish may be extended indefinitely.
An adjustable radius bar for circle cutting is optionally available.
The torch holder makes the bevel cutting of the lower edge possible, and the torch up / down unit is easy to handle and durable.
Light in weight (9.5kg=20.9lbs) for handling and transportation.
| Item no. | GS002001 |
| Model | CG-30(one torch) |
| Cutting speed | 100-800mm/min |
| Cutting capacity | 5-50mm |
| Input voltage | 110V/220V 50/60 Hz |
| Cutting edge sharp | I, V (45° ) |
| Motor | 1500 r.p.m |
| Dimension(mm3) | 350*140*175 |
| Item no. | GS002002 |
| Model | CG-30II(2 torches) |
| Cutting speed | 100-800mm/min |
| Cutting capacity | 5-50mm |
| Input voltage | 110V/220V 50/60 Hz |
| Cutting edge sharp | I, V (45° ) |
| Motor | 1500 r.p.m |
| Dimension(mm3) | 350*140*175 |
| Item no. | GS002003 |
| Model | rail 1.8 meter |
